6-6-02

Generate Kaleidoscope Desktop Images with REALbasic by Erick Tejkowsi

Just because "Dan the Desktop Man" is out of town doesn't mean we can't see some new desktop images. This week we'll build a project that generates random kaleidoscope-style images. This project lets you set colors, shapes, and image size to produce a wide variety of desktop images.

Build the Interface

Before you get started on this project, download the Flicker Free Canvas we used in earlier projects. Then, launch REALbasic and open Window1. Unstuff the flickerFreeCanvas and drag it in your REALbasic project.

Next, add the following controls:

Control Type	Control Name	Other Properties
Canvas	Canvas1	Super=flickerFreeCanvas
PushButton	PushButton1	Caption=Go
PushButton	PushButton2	Caption=Save
PopupMenu	PopupMenu1	InitialValue:Squares Circles
PopupMenu	PopupMenu2	InitialValue:Random Reds Greens Blues Reds and Greens Greens and Blues Reds and Greens
Timer	Timer1	Mode=0; Period=20

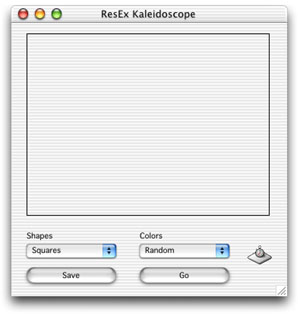

Arrange the interface however you desire. A sample might look like this:

Source Code

Before adding code, we need to do two things: define a property and add a file type. Double click any part of the Window1 interface to open its Code Editor. Then, select Edit-New Property. Create a Picture property like this:

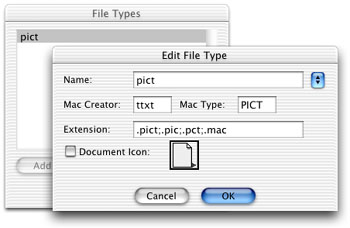

To add the file type, select Edit-File Types and add "pict" to the fray:

OK, now we're ready for some code. Navigate to the Action event of PushButton1 and add this code:


  if me.caption = "Go" then
    me.caption = "Stop"

    p=newpicture(canvas1.width,canvas1.height,32)
    if p<>nil then
      p.graphics.foreColor=rgb(0,0,0)
      p.graphics.fillrect 0,0,p.width,p.height
    end if

    Timer1.mode = 2
  else
    Timer1.mode = 0
    me.caption = "Go"
  end if


This code create a new image, toggles Timer1, and changes the caption on PushButton1.

Next, navigate to the Action event of Timer1 and enter this code


  dim rx,ry,rs as double
  dim square as boolean

  if popupMenu1.listindex=0 then
    square=TRUE
  else
    square=FALSE
  end if

  if p<>nil then
    //split the canvas(and picture) into four quadrants
    // 1 | 2
    //------------
    // 3 | 4

    // find a random "size" value
    rs = rnd * ((p.height/4)+1)

    //get a random point in the top left quadrant
    //to begin drawing

    // find a random x value
    rx = rnd * ((p.width/2)-rs+1)

    // find a random y value
    ry = rnd * ((p.height/2)+1)

    select case popupMenu2.listindex
      'Random
      'Reds
      'Greens
      'Blues
      'Reds and Greens
      'Greens and Blues
      'Reds and Greens
    case 0
      p.graphics.foreColor=rgb(rnd*255,rnd*255,rnd*255)
    case 1
      p.graphics.foreColor=rgb(rnd*255,0,0)
    case 2
      p.graphics.foreColor=rgb(0,rnd*255,0)
    case 3
      p.graphics.foreColor=rgb(0,0,rnd*255)
    case 4
      p.graphics.foreColor=rgb(rnd*255,rnd*255,0)
    case 5
      p.graphics.foreColor=rgb(0,rnd*255,rnd*255)
    case 6
      p.graphics.foreColor=rgb(rnd*255,0,rnd*255)
    end select


    if square then
      //SQUARES
      //draw a shape in quadrant 1
      p.graphics.fillrect rx,ry,rs,rs
      //draw a shape in quadrant 2
      p.graphics.fillrect p.width-rx-rs,ry,rs,rs
      //draw a shape in quadrant 3
      p.graphics.fillrect rx,p.height-ry-rs,rs,rs
      //draw a shape in quadrant 4
      p.graphics.fillrect p.width-rx-rs,p.height-ry-rs,rs,rs
    else
      //CIRCLES
      //draw a shape in quadrant 1
      p.graphics.filloval rx,ry,rs,rs
      //draw a shape in quadrant 2
      p.graphics.filloval p.width-rx-rs,ry,rs,rs
      //draw a shape in quadrant 3
      p.graphics.filloval rx,p.height-ry-rs,rs,rs
      //draw a shape in quadrant 4
      p.graphics.filloval p.width-rx-rs,p.height-ry-rs,rs,rs
    end if


    canvas1.mPicture = p
    canvas1.redraw
  end if


This code does the actual drawing. It splits the image up into four sections. A random size and position is then selected and a shape is drawn in each quadrant of the image according to these random numbers.

Finally, navigate to the Action event of PushButton2 and add this code:

  dim f as folderItem

  if timer1.mode<>0 then
    PushButton1.push
  end if

  f=GetSaveFolderItem("pict","ResEx Kaleidoscope Desktop.pct")
  if f<>nil then
    f.saveaspicture canvas1.mPicture
  end if



This code lets you save the image as a PICT file when you're finished.

Conclusion

That's all for this week. You can download the project or the built applications (for OS 9 or OS X) to try things out. So, get to work creating some fun desktop images and send them to Dan. See you next week!
